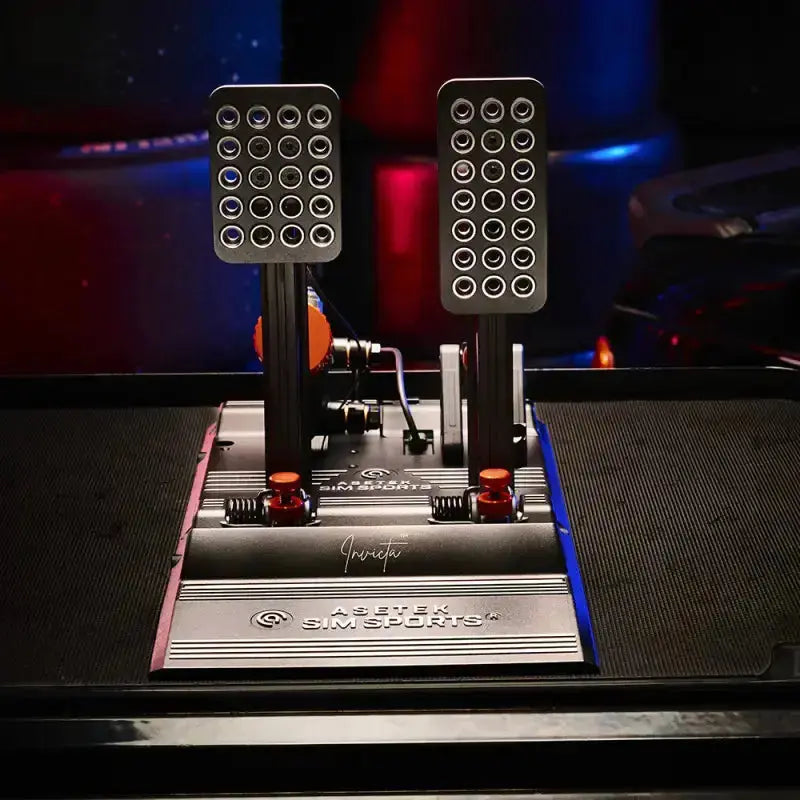

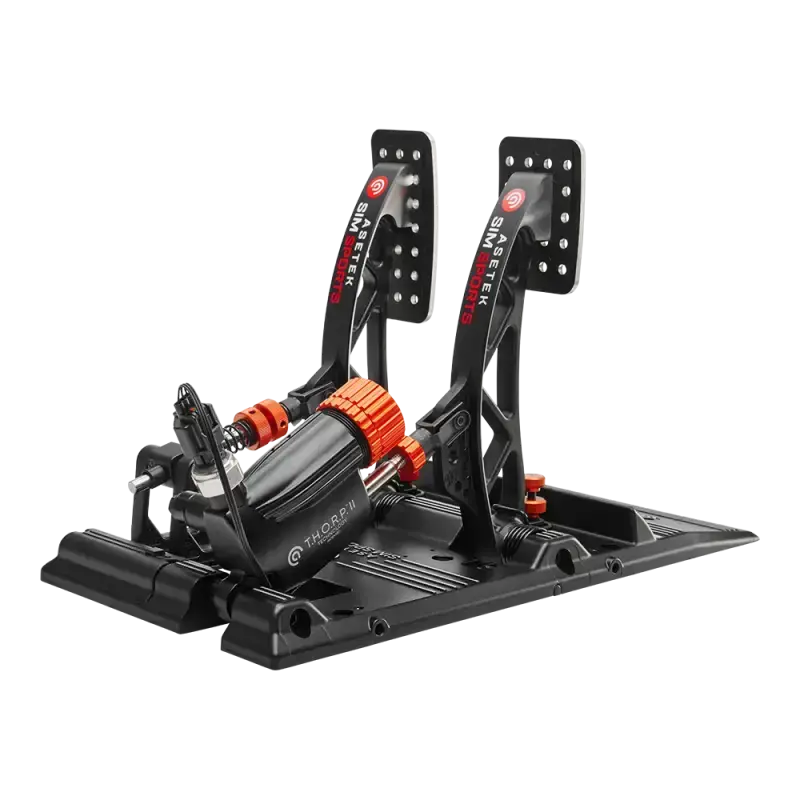

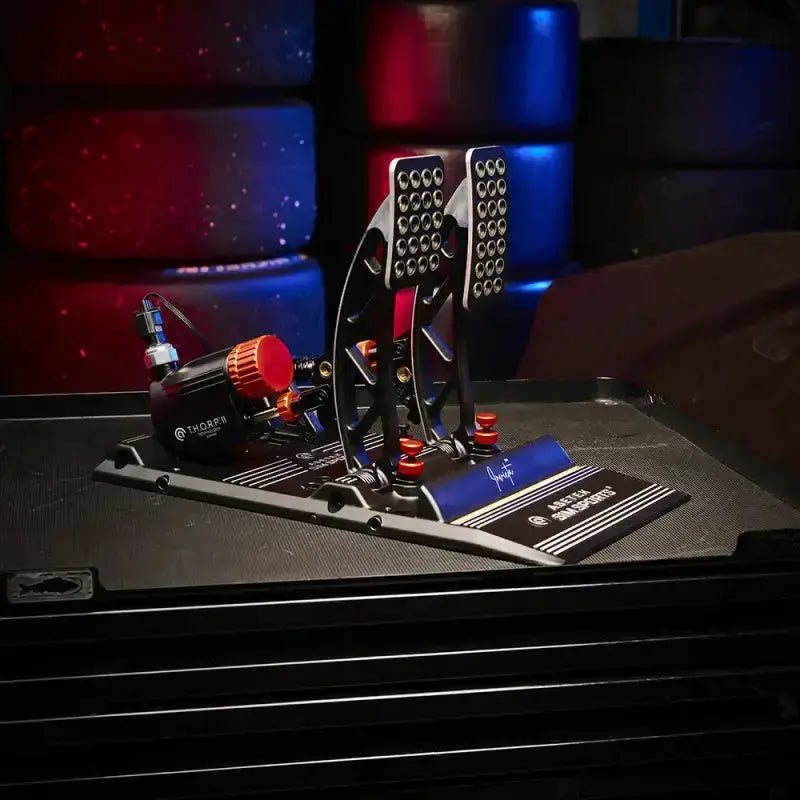

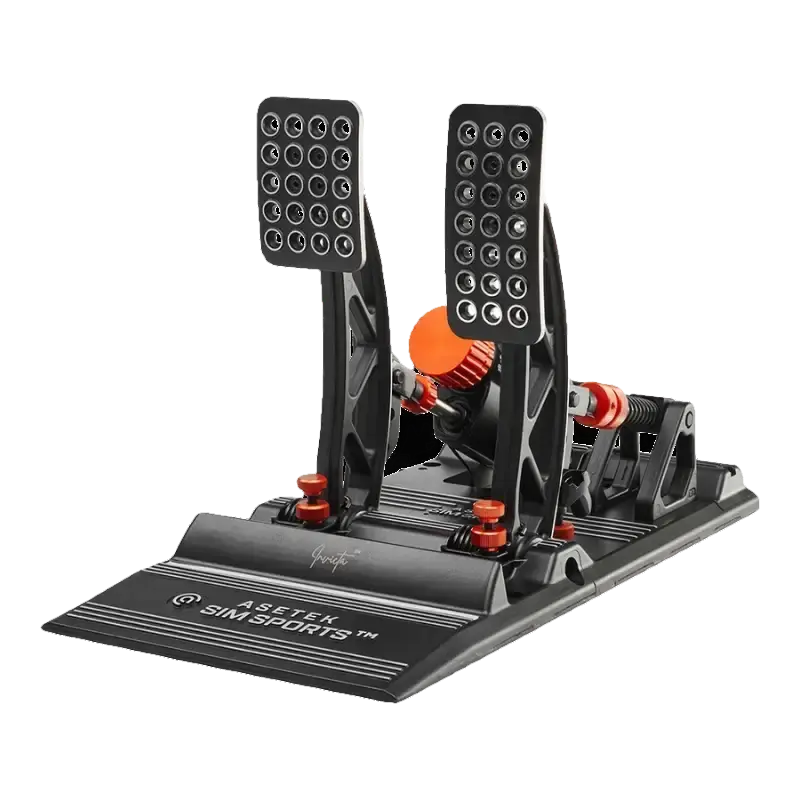

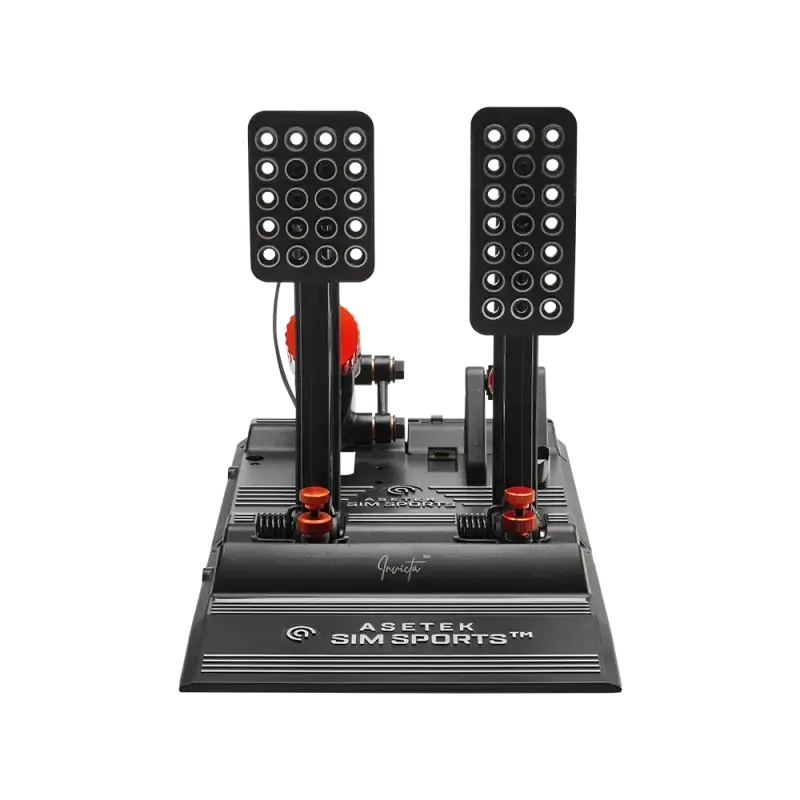

Asetek SimSports Invicta™ Pedals T.H.O.R.P.™ II Throttle and Brake Pedals
Pedal choice affects how you control braking and throttle input throughout a lap.
Choosing your configuration
This listing is for Asetek SimSports Invicta™ Pedals T.H.O.R.P.™ II Throttle and Brake Pedals. Use the specifications and package contents below to check which components are supplied.
Compare the pedal arrangement, connection method and mounting requirements. Check whether a clutch, heel rest or baseplate is part of the selected version, and whether the set connects directly to your PC or through a supported wheelbase.
A two-pedal hydraulic set with a shared aluminium base, a 0–100 bar T.H.O.R.P. II brake and RaceHub calibration.
The Asetek Invicta T.H.O.R.P. II brake and throttle pedals combine both pedals on a shared aluminium base with an integrated heel rest. Its T.H.O.R.P. II brake uses a two-stage hydraulic response and automotive-grade pressure sensor. Asetek specifies 0–100 bar brake pressure, up to 180 kg of force at the pedal plate and a complete product size of 418 x 212 x 256 mm with a verified product weight of 6 kg.
Why choose this product?
- The shared pedal base delivers an integrated brake-and-throttle package with heel rest, RGB lighting and a single USB connection to the PC.
- T.H.O.R.P. II hydraulic braking, five interchangeable elastomers and RaceHub calibration combine physical brake adjustment with software control of deadzones and throttle curves.
Product details
T.H.O.R.P. II hydraulic brake
The brake uses a soft stage followed by a firm hydraulic stage. Travel, pedal stop and initial touch hardness can be adjusted from the front. The automotive-grade pressure sensor measures 0–100 bar and Asetek equates 100 bar to 180 kg of force at the pedal plate.
Throttle and construction
The pedal base, arms and plates are black anodized aluminium. The throttle uses a 16-bit magnetic Hall sensor with adjustable hardness, travel and stop, plus configurable throttle curves in RaceHub. Adjustable pedal plates move on both x and y axes.
Software and upgrade path
RaceHub is used for calibration, upper and lower deadzones and throttle response, with settings stored in the pedal electronics. A compatible Asetek Invicta Clutch System can be added later; it is not included in this brake-and-throttle set.
Compatibility
Platform: PC is supported with Windows 10/11 according to Asetek.
Connection and ecosystem: The set connects by USB and Asetek lists the Invicta Clutch System, La Prima Clutch System, Forte Pedal Face Plates, Universal Footrest and Firm Throttle Spring as compatible products or upgrades.
Requirements: Secure cockpit mounting is required. The optional clutch is not included. Asetek supplies a USB-C to USB-A cable for PC connection and a second USB-C to USB-A cable for wheelbase connection.
Specifications
Connection
USB
Material
Aluminum
Product weight
6 kg
What's in the box?
- Invicta T.H.O.R.P. II brake and throttle pedal set
- T.H.O.R.P. II Long Travel Kit, five elastomers and medium throttle spring
- Performance grease and cable zip tie
- Two USB-C to USB-A cables
- 3 mm and 5 mm Allen keys plus supplied M6 hardware
- Warranty/safety information, manual QR flyer, RaceHub flyer and sticker sheet
Frequently asked questions
How is the standard Invicta T.H.O.R.P. II different from the S-Series?
The standard version mounts brake and throttle on a shared base with heel rest. S-Series uses separate assemblies for wider independent spacing.
How much brake force can the T.H.O.R.P. II system measure?
Asetek specifies a 0–100 bar pressure range and states that 100 bar corresponds to 180 kg of force at the pedal plate. The brake arm itself is designed for higher structural loads, which is a different specification.
What can I adjust in RaceHub?
RaceHub supports calibration, pedal deadzones and custom throttle curves. Mechanical brake travel, stop and initial touch hardness are adjusted on the pedal hardware, while the software stores calibration values in the pedal electronics.
Can I add a clutch pedal?
Yes. Asetek lists the Invicta Clutch System and La Prima Clutch System as compatible additions. A clutch is not included with the standard brake-and-throttle package.
What are the verified dimensions and weight?
Asetek specifies 418 x 212 x 256 mm for depth, width and height, and 6 kg for the complete pedal set. The 6 kg value is used for Shopify Variant Weight in this update.
